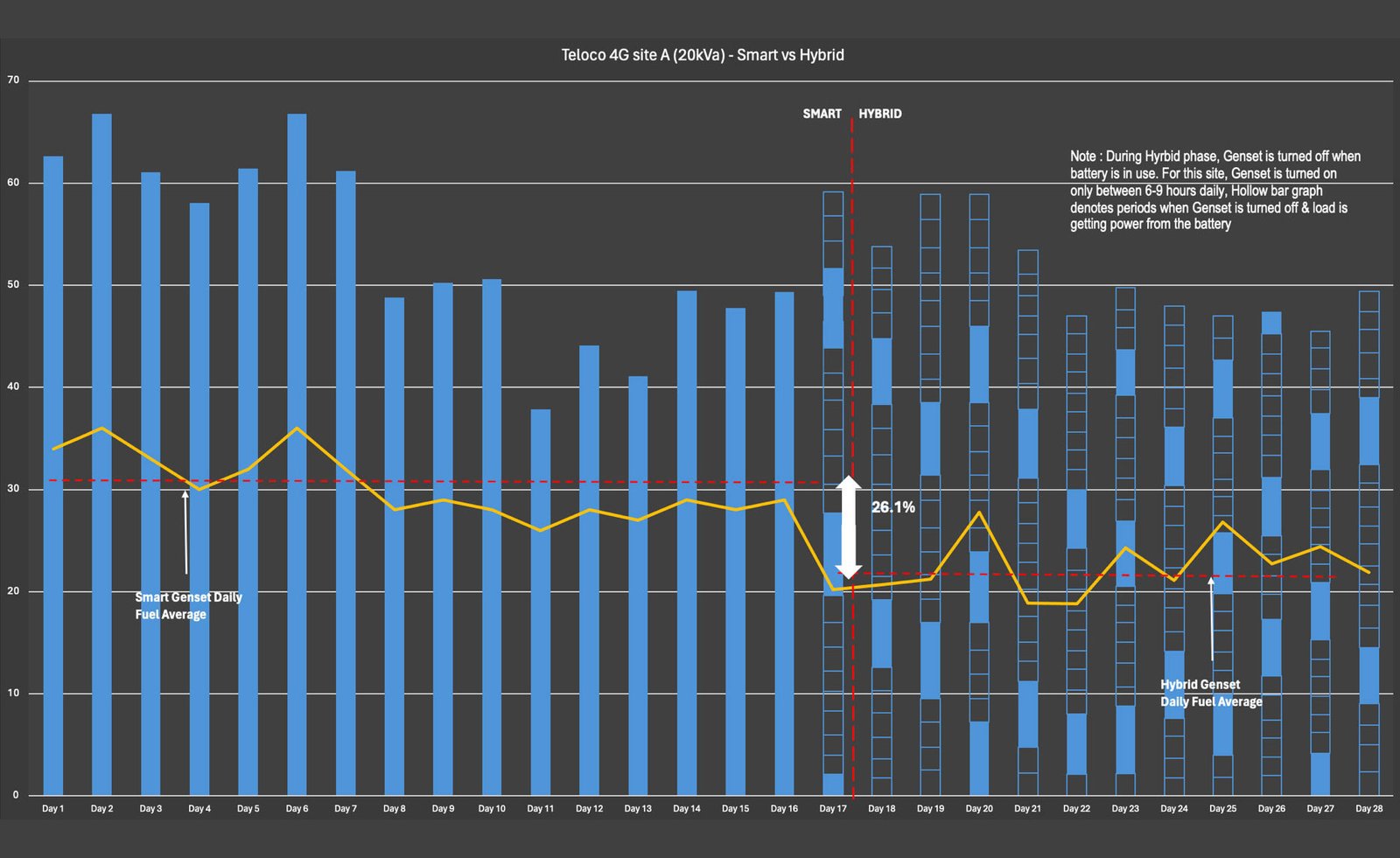

Xair’s SmartGEN when compared to conventional generators can save fuel anywhere between 25-30%. Graph beside shows data from 2 live Telco 4G sites; a comparison between config of 2 x Xair SmartGEN vs Xair HybridGEN. This site’s HybridGEN has a config of 1 x 20kVa SmartGEN + LiPhIon batteries + Xair controller.
Summary of the above

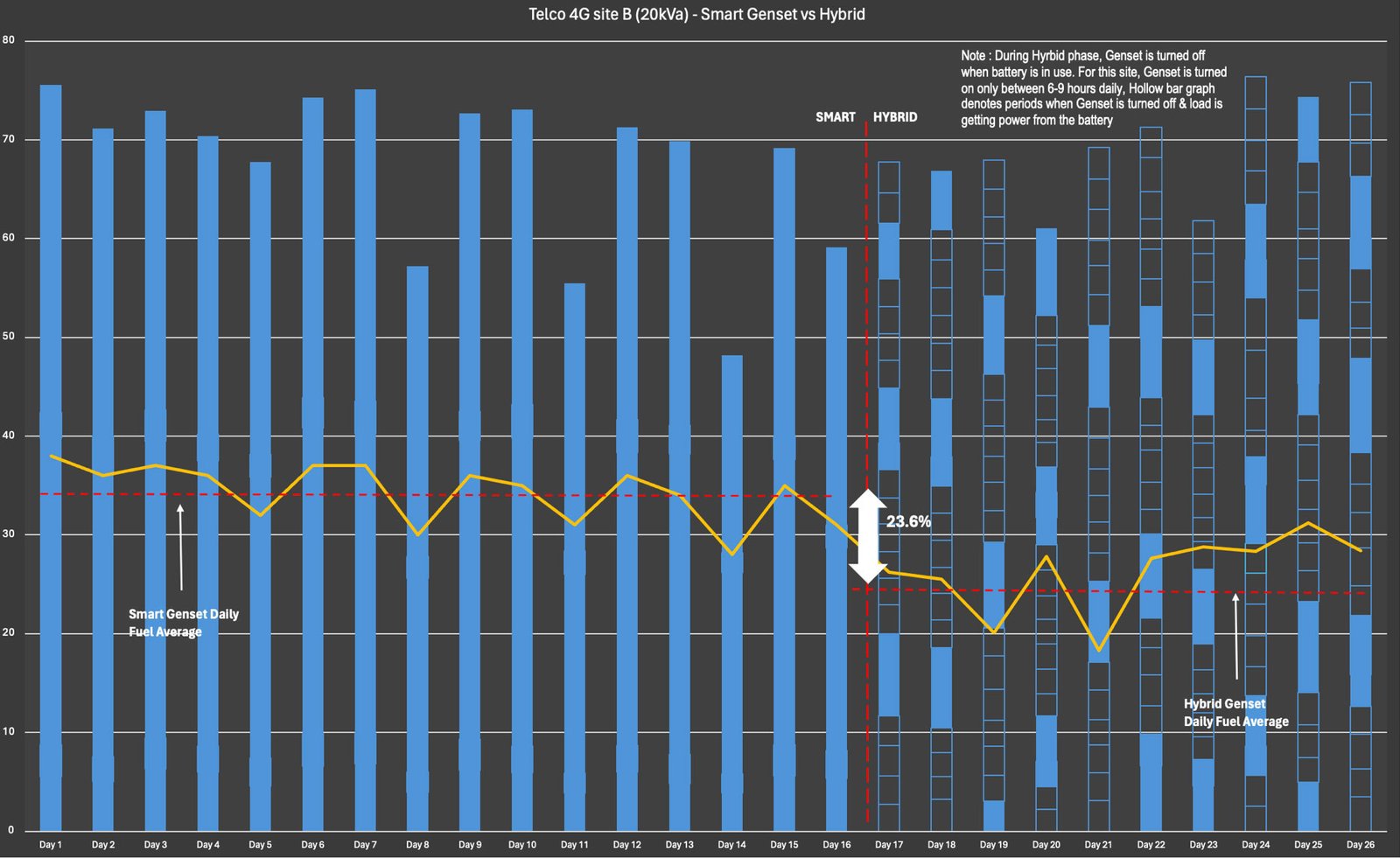

- •Migrating from a config of 2 x SmartGEN to a HybridGEN can yield further fuel savings of between 23.5-26.1%.
- •The hollow bar graph during the Hybrid phase shows the load taking power from the Battery & the genset is turned-off. The time period when the genset is turned-on is highlighted via the non-hollow bar graph.
- •As per graph above, the HybridGEN in the system will turn-on the SmartGEN only between 6-9 hours a day.
- •Xair SmartGEN needs to be serviced once every 500 hours. Via the HybridGEN config, overall servicing has dropped from once a month to once every 70 days (2+ months).

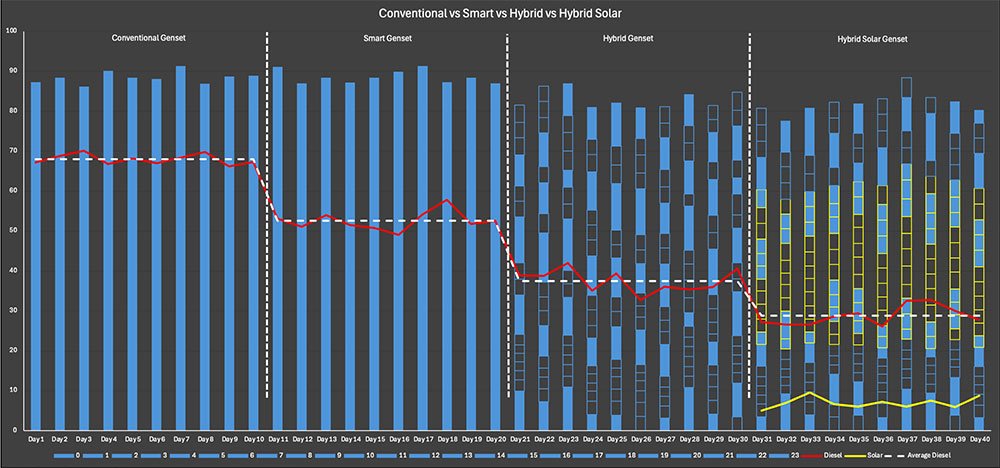

Chart above shows fuel consumption comparison; Conventional vs SmartGEN vs HybridGEN vs HybridGEN Solar. Daily load profile for all 4 segments are approximately the same. Data above was taken from a live 4G site. Chart above clearly indicates reduction of fuel consumption from using standard conventional genset config (2 x 20kVa conventional genset) right until Xair Hybrid Solar Genset (Xair Smart 20kVa genset + 20kW LiPhIon battery + 4xSolarPV). Fuel reduction is close to 60%.
